Waterproof LED Bulkhead Wall Light
Waterproof LED Bulkhead Wall Light

Waterproof LED Bulkhead Wall Light

Model NO.
BHL160CP02

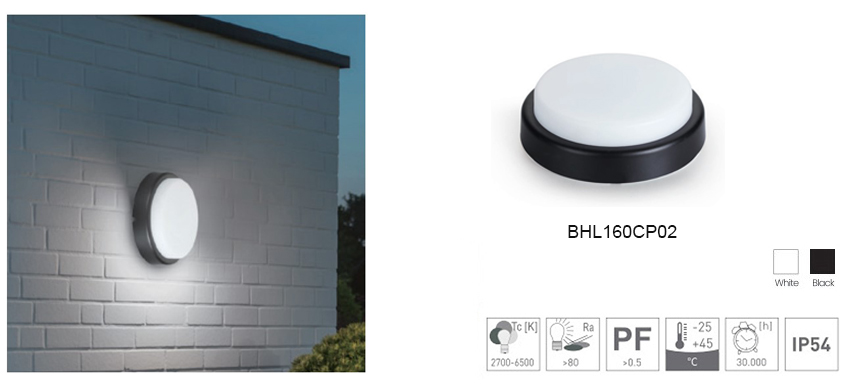

8W 12W LED IP54 flush wall mounted bulkhead light fitting with black trim, perfect for indoor, outdoor, bath, hallway, corridor, utility, garden, shed, workshop, patio etc.
Quantity:
This fashionable bulkhead light is perfect for a utility area, such as the laundry, garage, basement or storage room. It’s also greatly suitable to your kitchen, bathroom, office, walk-in closet, hallway, workshop and many places where you need a brighter.

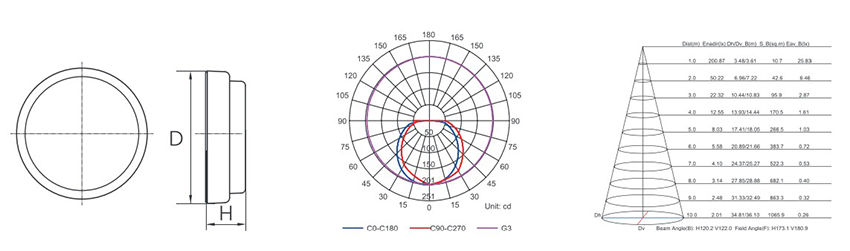

Technical Data
Model
Dimension (DxH)
Power
Lumen
IP
Beam Angle
Material
BHL160CP02
Φ160x48mm
8W
600Lm
IP54
120°
Plastic
BHL160CP02
Φ160x48mm
12W
900Lm
IP54
120°
Plastic

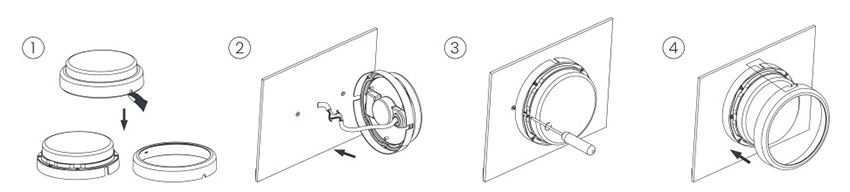

How to install?
1, Separate the two parts of bulkhead light, light part and collar part.
2, Dig holes on the wall, make sure they are same distance to the light fitting. Connect the wires.
3, Install light part to the wall.
4, Screw the collar to the light.
