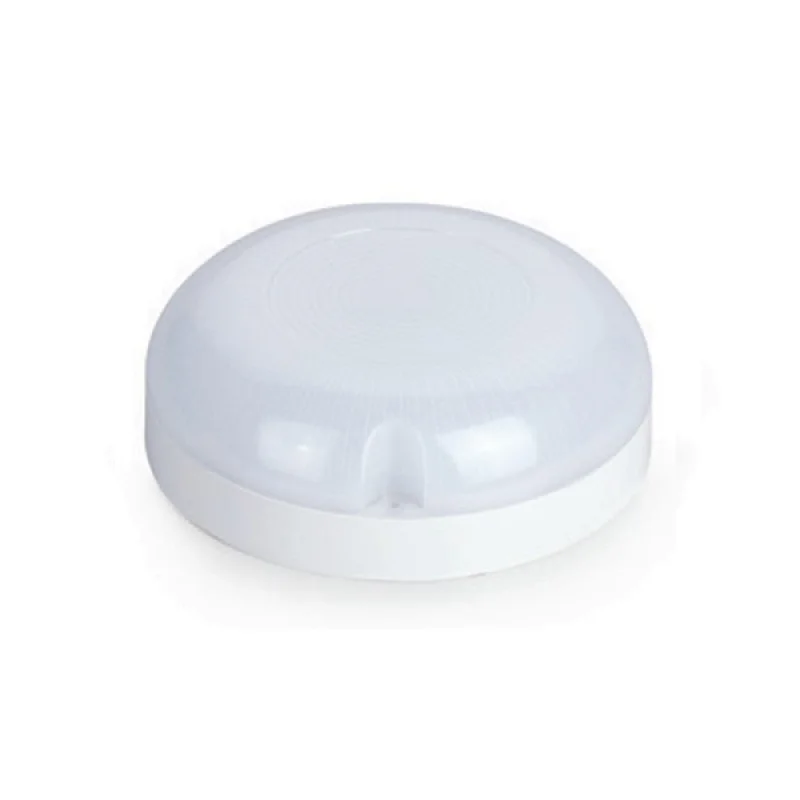

This round bulkhead light is perfect for a utility area, such as the laundry, garage, basement or storage room. It’s also can use in your kitchen, bathroom, office, walk-in closet, hallway, workshop and many places where you need a brighter.
Technical Data

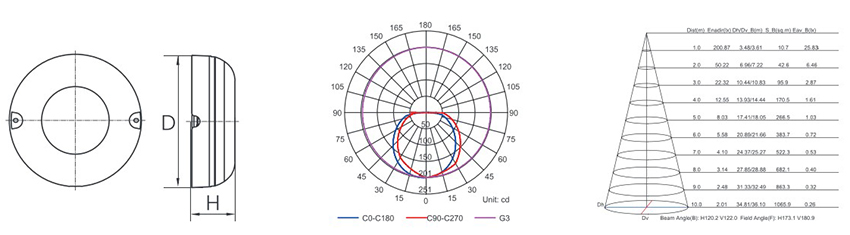

Model | Dimension (DxH) | Power | Lumen | IP | Beam Angle | Material |

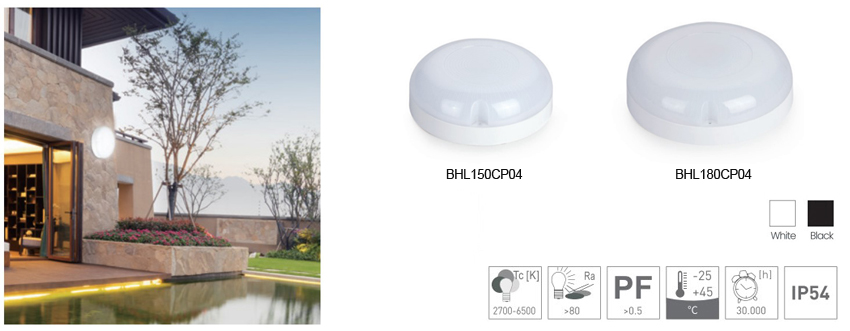

BHL150CP04 | Φ150x49mm | 12W | 900lm | IP54 | 120° | Plastic |
| BHL150CP04-M | Φ150x49mm | 12W | 900lm | IP54 | 120° | Plastic |
| BHL150CP04-S | Φ150x49mm | 12W | 900lm | IP54 | 120° | Plastic |
| BHL180CP04 | Φ180x52mm | 18W | 1350lm | IP54 | 120° | Plastic |
| BHL180CP04-M | Φ180x52mm | 18W | 1350lm | IP54 | 120° | Plastic |
| BHL180CP04-S | Φ180x52mm | 18W | 1350lm | IP54 | 120° | Plastic |
M=Microwave Sensor S=Acoustic Sensor

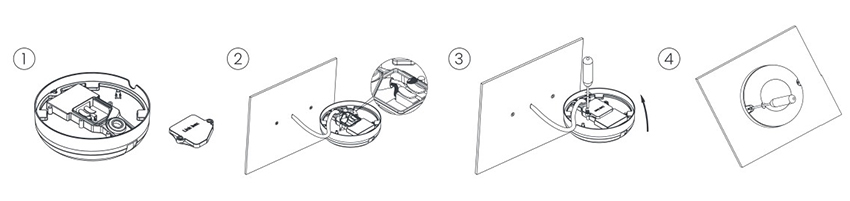

How to install?
1, Separate the two parts of bulkhead light, light part and the back cover.
2, Dig holes on the wall, make sure they are same distance to the light fixture. Connect the power line to the junction box of light.
3, Cover the back cover to the light part.
4, Install light to the wall.
2, Dig holes on the wall, make sure they are same distance to the light fixture. Connect the power line to the junction box of light.
3, Cover the back cover to the light part.
4, Install light to the wall.
