Our outside bulkhead lights can be used for lighting in humid, dusty, rain drenched, microseismic environment and places with corrosive gas below grade I, such as coal handling, dust removal, boiler body, pump room and other places of power plant.

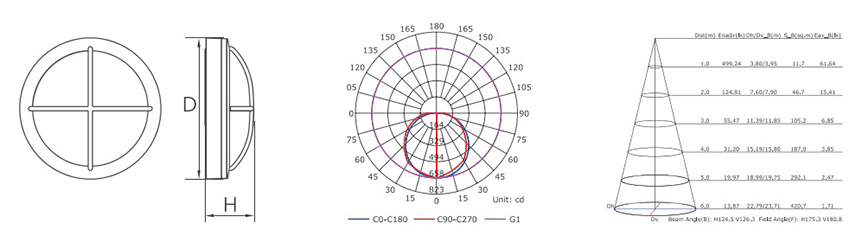

Technical Data
Model | Dimension (DxH) | Power | Lumen | IP | Beam Angle | Material |
BHL170CP07B | Φ170x65mm | 12W | 840lm | IP65 | 120° | Plastic |
| BHL170CP07B-M | Φ170x65mm | 12W | 840lm | IP65 | 120° | Plastic |
| BHL170CP07B-S | Φ170x65mm | 12W | 840lm | IP65 | 120° | Plastic |
| BHL230CP07B | Φ230x79mm | 18W | 1260lm | IP65 | 120° | Plastic |
| BHL230CP07B-M | Φ230x79mm | 18W | 1260lm | IP65 | 120° | Plastic |
| BHL230CP07B-S | Φ230x79mm | 18W | 1260lm | IP65 | 120° | Plastic |
M=Microwave Sensor S=Acoustic Sensor

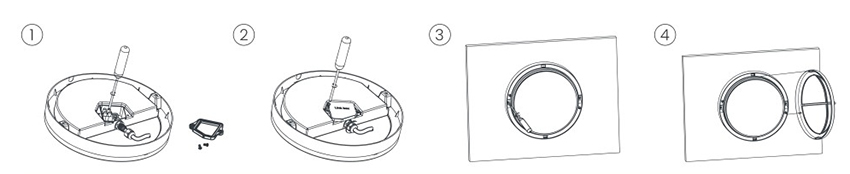

How to install?
1, Open the back cover, connect the power line to the junction box of light.
2, Cover the back cover to the light.
3, Install light to the wall.
4, Install the cover.
2, Cover the back cover to the light.
3, Install light to the wall.
4, Install the cover.
