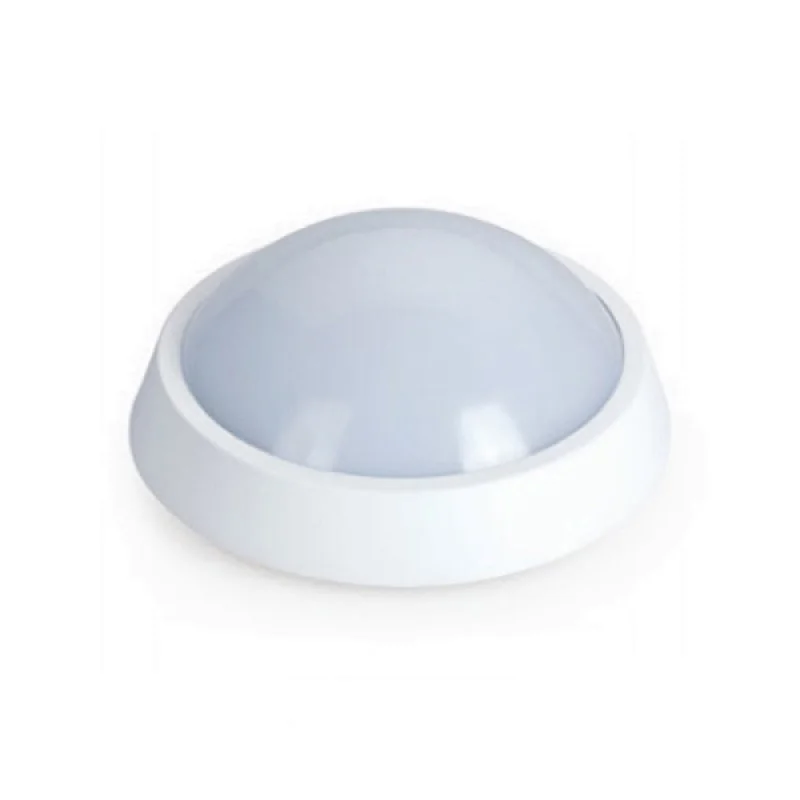

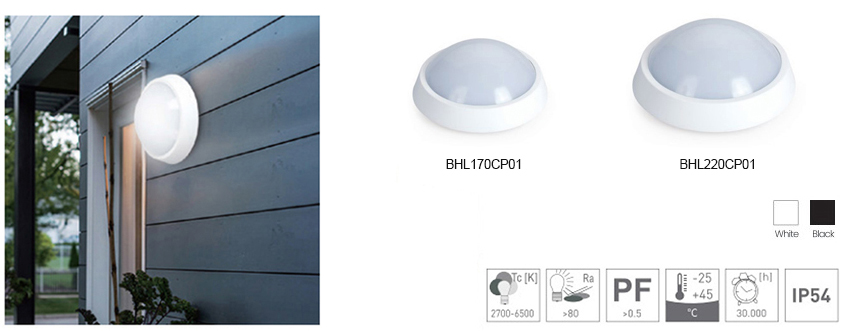

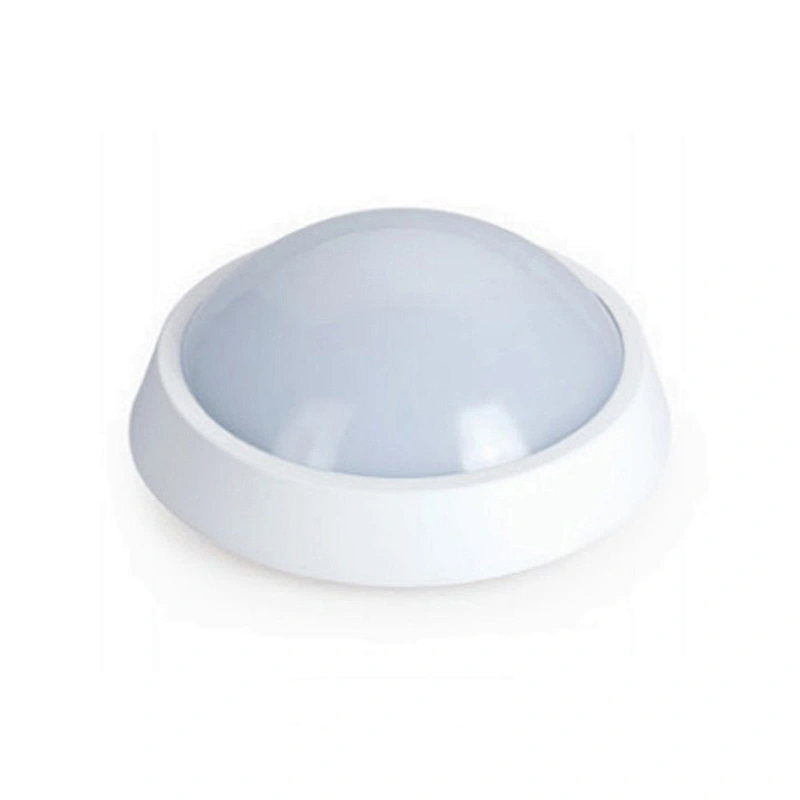

This LED bulkhead light, whether function or decorative, will not only keep you on the right path, but it will also add the perfect glow to your outdoor oasis.
Technical Data
Technical Data

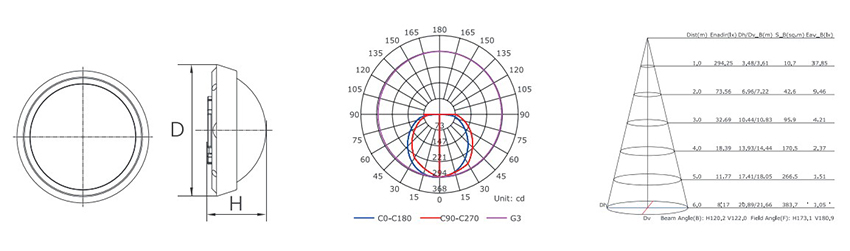

Model | Dimension (DxH) | Power | Lumen | IP | Beam Angle | Material |
BHL170CP01 | Φ170x75mm | 8W | 560Lm | IP54 | 120° | Plastic |
BHL170CP01 | Φ170x75mm | 12W | 840Lm | IP54 | 120° | Plastic |
BHL170CP01-M | Φ170x75mm | 12W | 840Lm | IP54 | 120° | Plastic |
BHL170CP01-S | Φ170x75mm | 12W | 840Lm | IP54 | 120° | Plastic |
BHL220CP01 | Φ220x99mm | 12W | 840Lm | IP54 | 120° | Plastic |
BHL220CP01 | Φ220x99mm | 18W | 1260Lm | IP54 | 120° | Plastic |
BHL220CP01-M | Φ220x99mm | 18W | 1260Lm | IP54 | 120° | Plastic |
BHL220CP01-S | Φ220x99mm | 18W | 1260Lm | IP54 | 120° | Plastic |
M=Microwave Sensor S=Acoustic Sensor

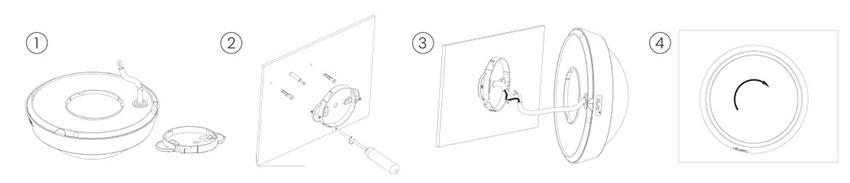

How to install?
1, Separate the two parts of bulkhead light, base part and light part.
2, Dig holes on the wall, make sure they are same distance to the base. Install base part to the wall.
3, Connect the wires.
4, Screw the light to the base.
1, Separate the two parts of bulkhead light, base part and light part.
2, Dig holes on the wall, make sure they are same distance to the base. Install base part to the wall.
3, Connect the wires.
4, Screw the light to the base.
