High efficiency LED moisture-proof lamp, energy saving effect is very significant. Plastic lamp body and cover, coupled with high-quality silicone ring, good to achieve the requirements of dust-proof, waterproof, anti-corrosion.

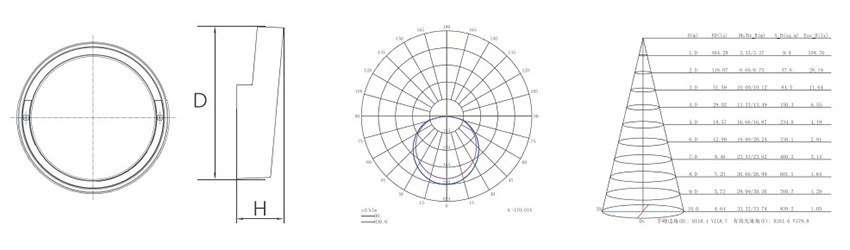

Technical Data
Model | Dimension (DxH) | Power | Lumen | IP | Beam Angle | Material |
BHL170CP11 | Φ170x68mm | 12W | 840lm | IP65 | 120° | Plastic |
| BHL170CP11-M | Φ170x68mm | 12W | 840lm | IP65 | 120° | Plastic |
| BHL170CP11-S | Φ170x68mm | 12W | 840lm | IP65 | 120° | Plastic |
| BHL220CP11 | Φ220x68mm | 18W | 1260lm | IP65 | 120° | Plastic |
| BHL220CP11-M | Φ220x68mm | 18W | 1260lm | IP65 | 120° | Plastic |
| BHL220CP11-S | Φ220x68mm | 18W | 1260lm | IP65 | 120° | Plastic |
M=Microwave Sensor S=Acoustic Sensor

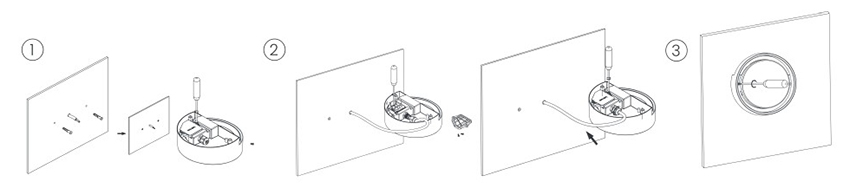

How to install?
1, Dig two small holes, insert the plastic expansion screws. Open the back cover.
2, Connect the power line to the junction box of light. Cover the back cover to the light.
3, Install light to the wall.
2, Connect the power line to the junction box of light. Cover the back cover to the light.
3, Install light to the wall.
