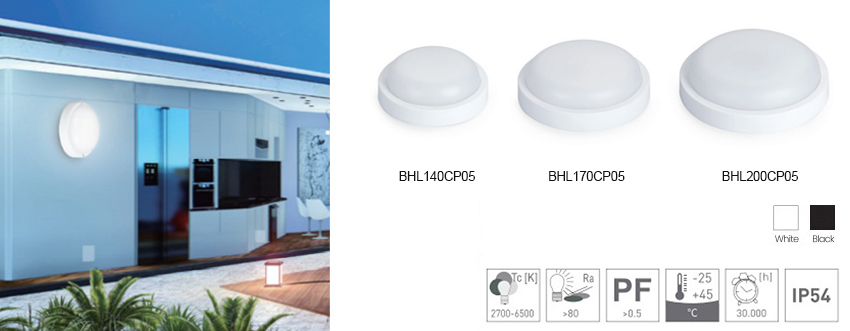

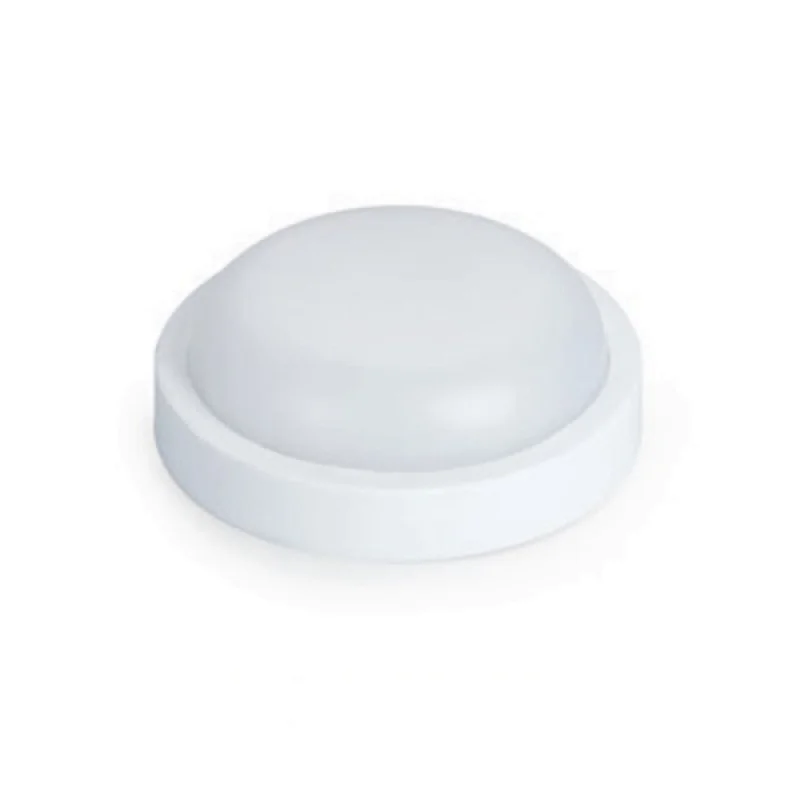

Plastic LED Waterproof Bulkhead Light

Model NO.: BHL140CP05

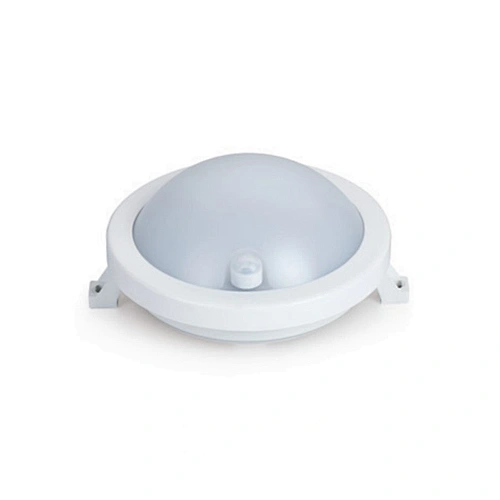

round wall mounted LED waterproof bulkhead light, Wet Rated IP54 light, with microwave sensor/acoustic sensor

Quantity:

Product Description

- High lumen output and high lighting efficacy, to save more than 90% energy.

- Use the most mature international well-known LED as the light source, which can ensure the brightness and long lifetime, also can reduce the light decay

- Easy to install, Surface mounted

Technical Data

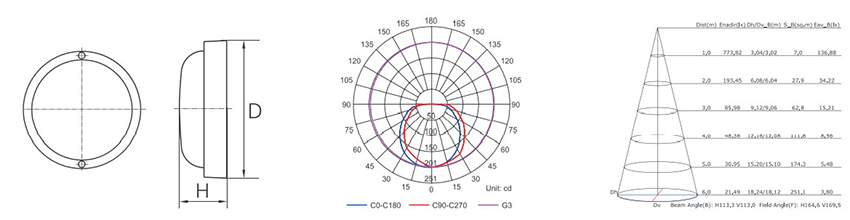

Model	Dimension (DxH)	Power	Lumen	IP	Beam Angle	Material
BHL140CP05	Φ140x48mm	8W	560lm	IP54	120°	Plastic
BHL140CP05-M	Φ140x48mm	8W	560lm	IP54	120°	Plastic
BHL140CP05-S	Φ140x48mm	8W	560lm	IP54	120°	Plastic
BHL170CP05	Φ170x50mm	12W	840lm	IP54	120°	Plastic
BHL170CP05-M	Φ170x50mm	12W	840lm	IP54	120°	Plastic
BHL170CP05-S	Φ170x50mm	12W	840lm	IP54	120°	Plastic
BHL200CP05	Φ200x55mm	18W	1260lm	IP54	120°	Plastic
BHL200CP05-M	Φ200x55mm	18W	1260lm	IP54	120°	Plastic
BHL200CP05-S	Φ200x55mm	18W	1260lm	IP54	120°	Plastic

M=Microwave Sensor S=Acoustic Sensor

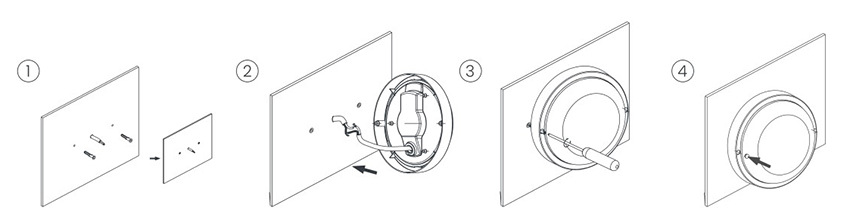

How to install?
1, Dig two small holes, insert the plastic expansion screws.
2, Connect the wires.
3, Install light to the wall.
4, Snap the two small face to hole.
