This fixture is now brighter than before with > 800 lumens. That usually requires the equivalent of at least a 75W light bulb, but this LED light only consumes 10W of power, saving you money and time on maintenance costs every day you have this fixture installed.

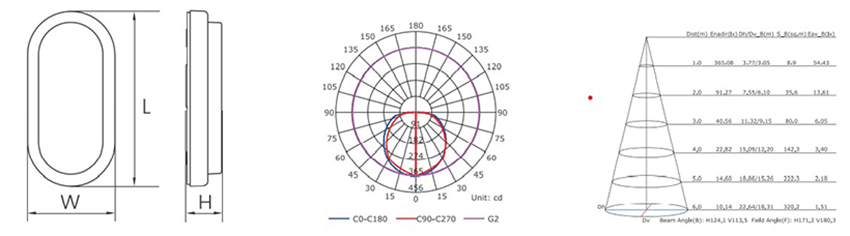

Technical Data
Technical Data

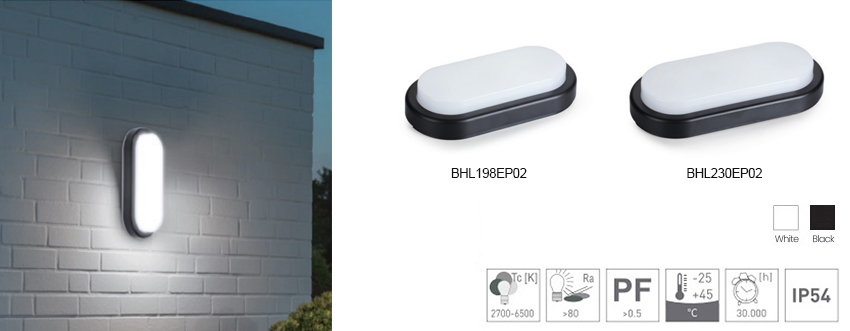

Model | Dimension (DxH) | Power | Lumen | IP | Beam Angle | Material |
BHL198EP02 | 198x99x41mm | 8W | 600lm | IP54 | 120° | Plastic |
BHL198EP02 | 198x99x41mm | 12W | 900lm | IP54 | 120° | Plastic |
BHL230EP02 | 230x105x41mm | 12W | 900lm | IP54 | 120° | Plastic |
BHL230EP02 | 230x105x41mm | 15W | 1125lm | IP54 | 120° | Plastic |

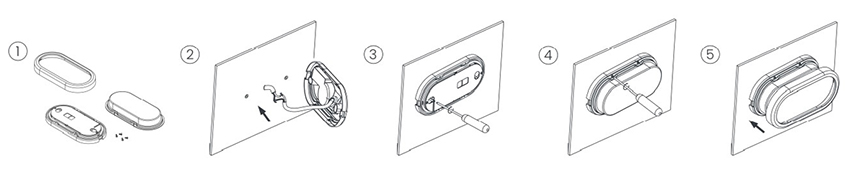

How to install?
1, Separate the three parts of bulkhead light, light part, light shadow and collar part.
2, Dig holes on the wall, make sure they are same distance to the light fitting. Connect the wires.
3, Install light part to the wall.
4, Install light shadow to the light.
5, Snap the collar on to the light.
1, Separate the three parts of bulkhead light, light part, light shadow and collar part.
2, Dig holes on the wall, make sure they are same distance to the light fitting. Connect the wires.
3, Install light part to the wall.
4, Install light shadow to the light.
5, Snap the collar on to the light.
