This item is very easy to install, even a woman can mount it well. This integrated installation of LED lamps, direct access to the power line to the junction box of lamps, eliminating the trouble of wiring outside the lamp body, but also to ensure the safety risk of leakage
Technical Data
Technical Data

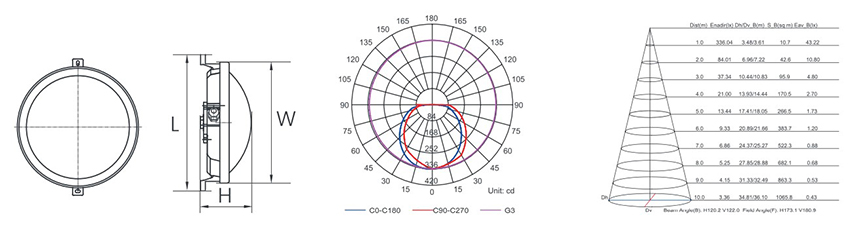

Model | Dimension (DxH) | Power | Lumen | IP | Beam Angle | Material |

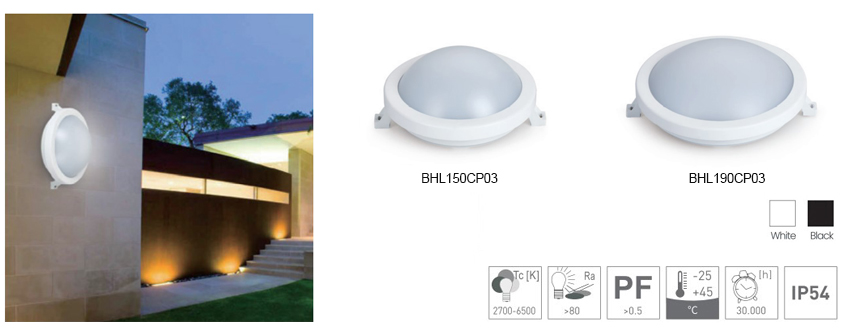

BHL150CP03 | 172x150x79mm | 6W | 420Lm | IP54 | 120° | Plastic |
BHL150CP03 | 172x150x79mm | 10W | 700Lm | IP54 | 120° | Plastic |
BHL150CP03-M | 172x150x79mm | 10W | 700Lm | IP54 | 120° | Plastic |
BHL150CP03-S | 213x190x79mm | 10W | 700Lm | IP54 | 120° | Plastic |
BHL190CP03 | 213x190x79mm | 15W | 1050Lm | IP54 | 120° | Plastic |
BHL190CP03-M | 213x190x79mm | 15W | 1050Lm | IP54 | 120° | Plastic |
BHL190CP03-S | 213x190x79mm | 15W | 1050Lm | IP54 | 120° | Plastic |

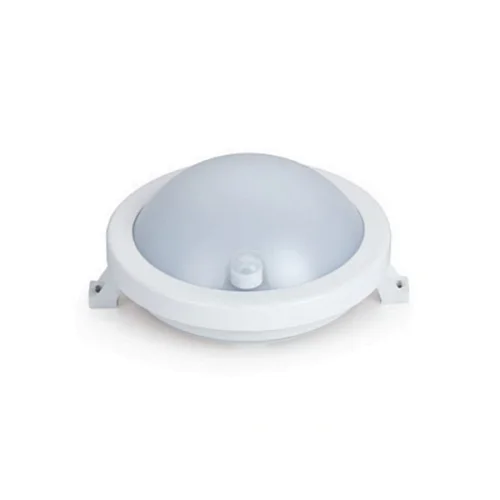

M=Microwave Sensor S=Acoustic Sensor
How to install?

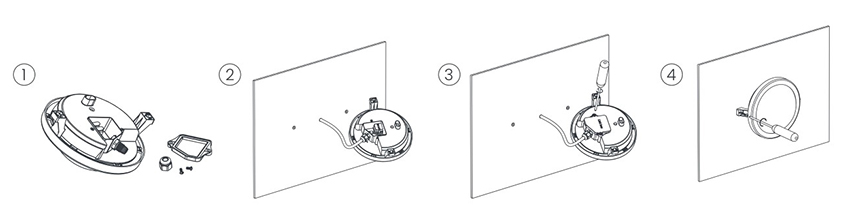

1, Separate the two parts of bulkhead light, light part and the back cover.
2, Dig holes on the wall, make sure they are same distance to the light fixture. Connect the power line to the junction box of light.
3, Cover the back cover to the light part.
4, Install light to the wall.
1, Separate the two parts of bulkhead light, light part and the back cover.
2, Dig holes on the wall, make sure they are same distance to the light fixture. Connect the power line to the junction box of light.
3, Cover the back cover to the light part.
4, Install light to the wall.
