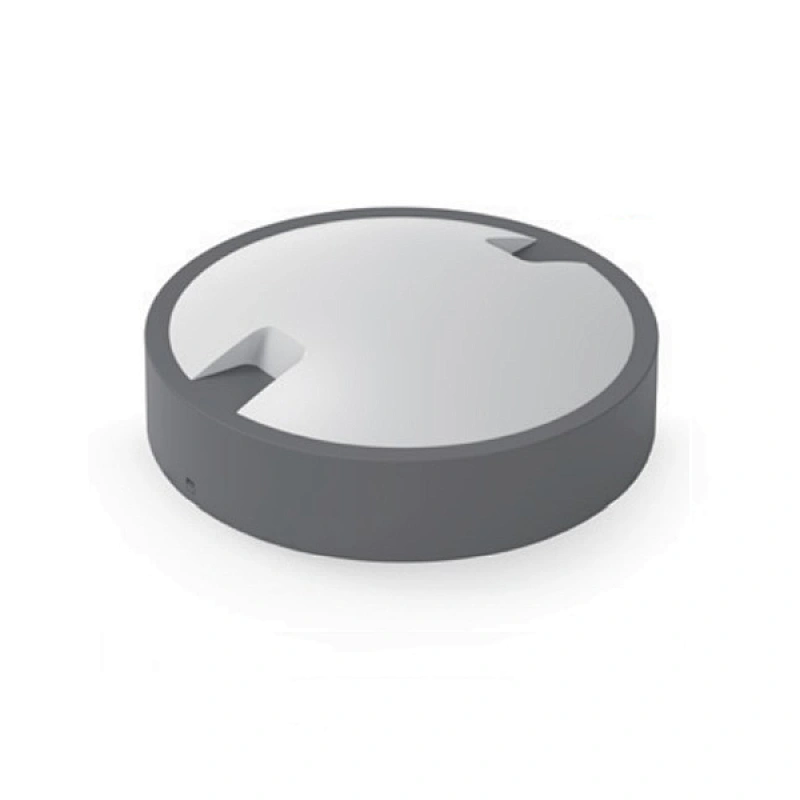

This integrated installation of LED lamps, direct access to the power line to the junction box of lamps, eliminating the trouble of wiring outside the lamp body, but also to ensure the safety.
Technical Data
Technical Data

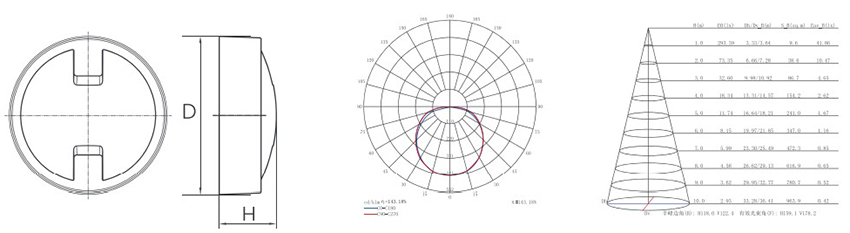

Model | Dimension (DxH) | Power | Lumen | IP | Beam Angle | Material |

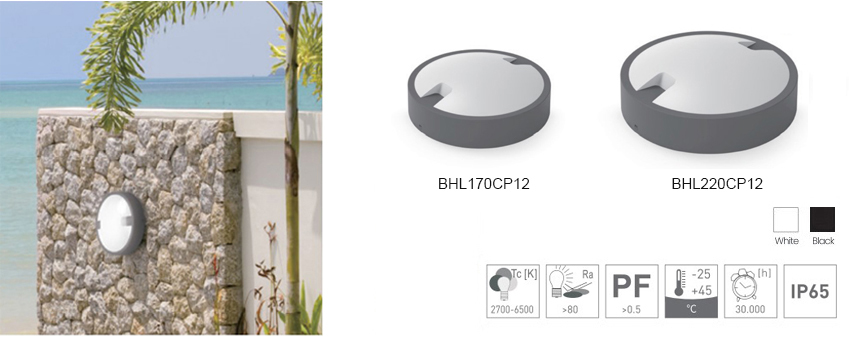

BHL170CP12 | Φ170x62mm | 12W | 840lm | IP65 | 120° | Plastic |
| BHL170CP12-M | Φ170x62mm | 12W | 840lm | IP65 | 120° | Plastic |
| BHL170CP12-S | Φ170x62mm | 12W | 840lm | IP65 | 120° | Plastic |
| BHL220CP12 | Φ220x65mm | 18W | 1260lm | IP65 | 120° | Plastic |
| BHL220CP12-M | Φ220x65mm | 18W | 1260lm | IP65 | 120° | Plastic |
| BHL220CP12-S | Φ220x65mm | 18W | 1260lm | IP65 | 120° | Plastic |
M=Microwave Sensor S=Acoustic Sensor

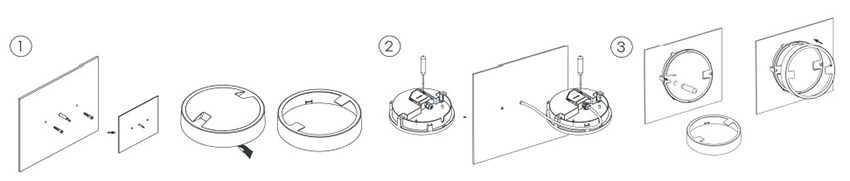

How to install?
1, Dig two small holes, insert the plastic expansion screws. Separate the two parts of bulkhead light, trim part and light part.
2, Connect the power line to the junction box of light.
3, Install light to the wall. Snap the trim to the light.
2, Connect the power line to the junction box of light.
3, Install light to the wall. Snap the trim to the light.
