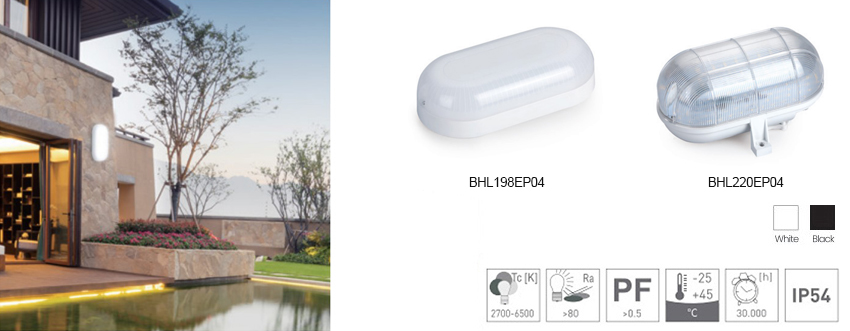

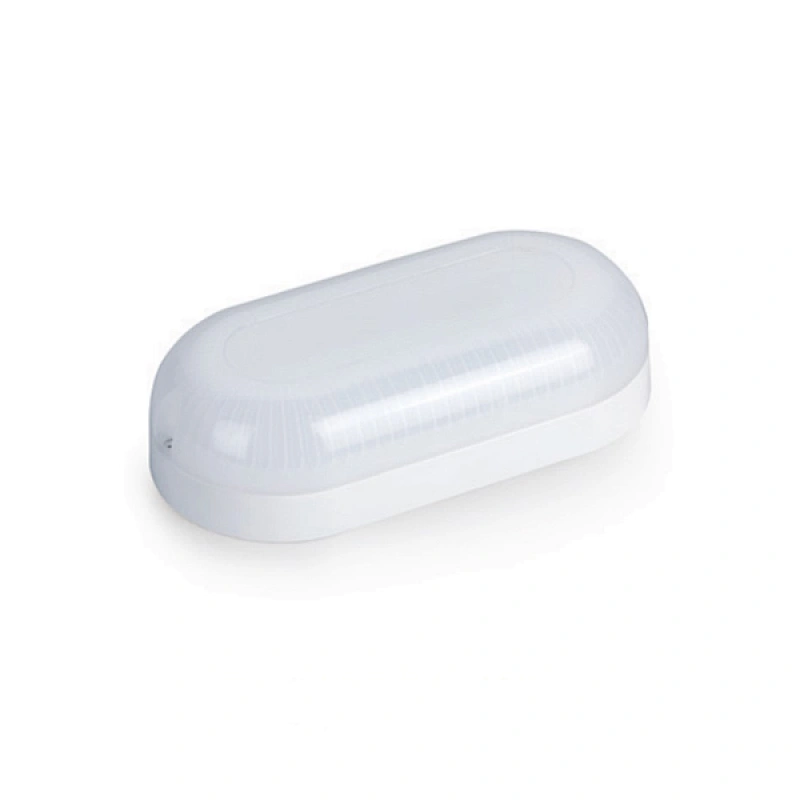

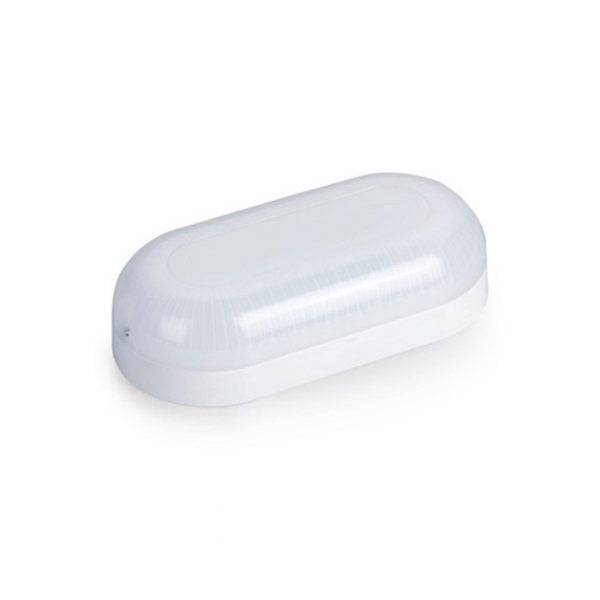

IP54 Outside Bulkhead Lamp LED

Model NO.: BHL198EP04

Outdoor wall mounted bulkhead light, with microwave sensor/acoustic sensor, IP54, with TUV/GS, CE, RoHs, CB certification

Quantity:

Product Description

- Up to 90% energy efficient, can be used upright or sideways
- 30000 hrs high quality and robustly made CE CB RoHS approved
- Ideal for outdoor security and waterproof lighting

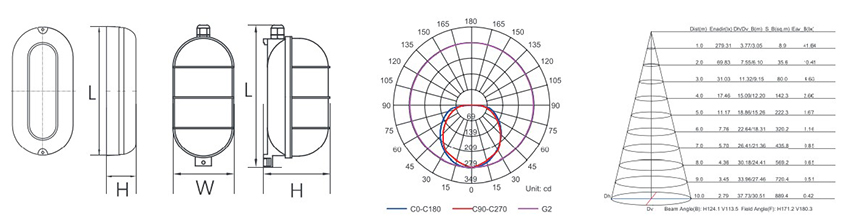

Technical Data

Model	Dimension (DxH)	Power	Lumen	IP	Beam Angle	Material
BHL198EP04	198x100x49mm	15W	1125lm	IP54	120°	Plastic
BHL198EP04-M	198x100x49mm	15W	1125lm	IP54	120°	Plastic
BHL198EP04-S	198x100x49mm	15W	1125lm	IP54	120°	Plastic
BHL220EP04	222x95x104mm	10W	750lm	IP54	120°	Plastic
BHL220EP04	222x95x104mm	15W	1125lm	IP54	120°	Plastic

M=Microwave Sensor S=Acoustic Sensor

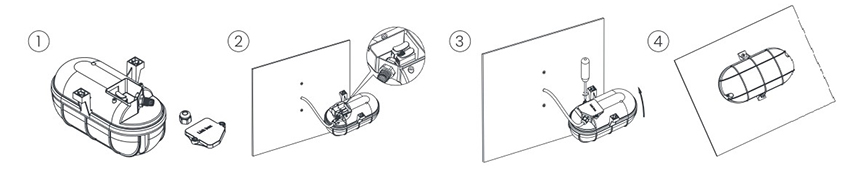

How to install?
1, Open the back cover.
2, Connect the power line to the junction box of light.
3, Cover the back cover back to the light.
4, Install light to the wall.
