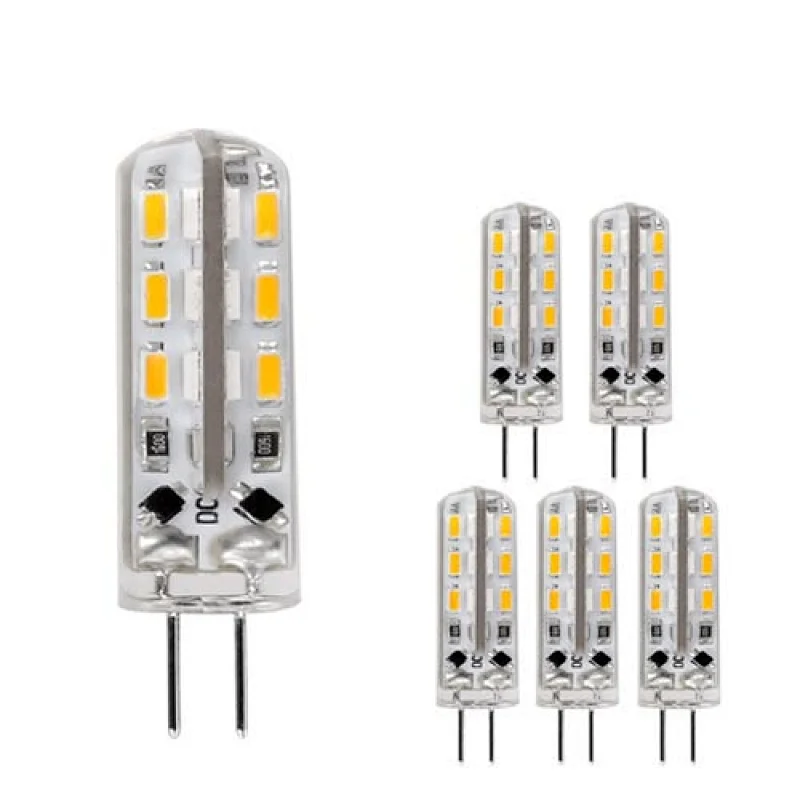

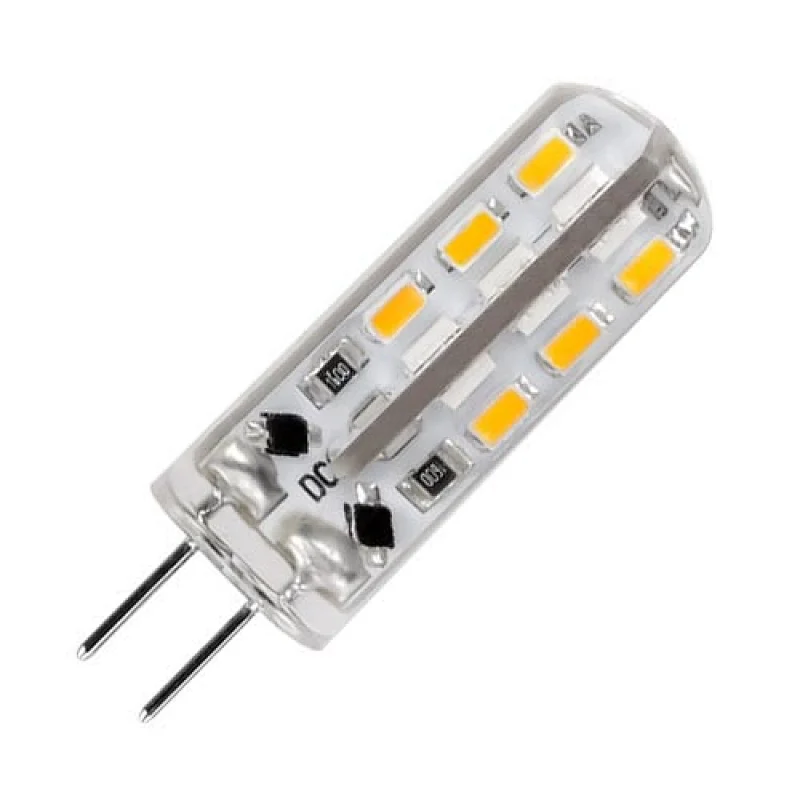

LED G4 bulb 24SMD

Model NO.: LED-G4-001

1W slim G4 Bi-Pin base LED light bulb 12V AC/DC 24 SMD 3014 90lm 10W halogen replacement, matching to 2021 new ERP standard

Quantity:

Product Description

LED G4 bulb 24SMD

ITEM	Voltage	Base	Power	Lumen	Ra	LED type	Angle	Weight	Size

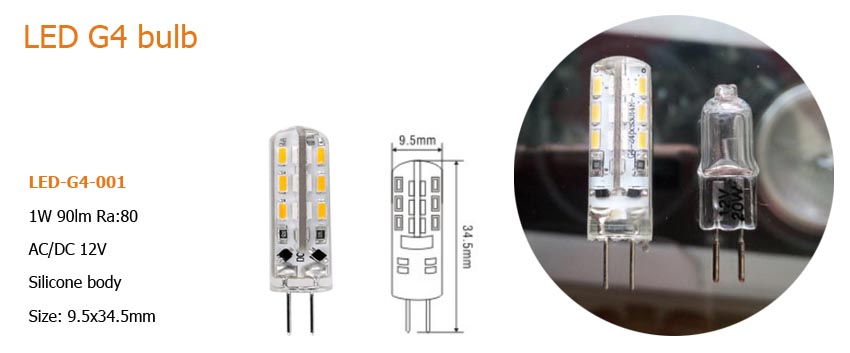

LED-G4-001	AC/DC 12V	G4	1W	90lm	80	24x3014SMD	270°	3g	9.5x34.5
LED-G4-002	AC/DC 12V	G4	1.8W	160lm	80	48x3014SMD	270°	5g	12.5x37
LED-G4-003	AC/DC 12V	G4	2W	200lm	80	10x2835SMD	270°	5g	10x37
LED-G4-004	AC/DC 12V	G4	1.5W	150lm	80	COB	270°	5g	10x37
LED-G4-004	AC/DC 12V	G4	2W	230lm	80	COB	270°	6g	12.5x41

Chip type: 3014SMD x 24

Material: silicone gel

Life: 25000hrs

Color Temperature: 2700-6500K

CE, RoHS certificated

Energy Class: F

Note tip

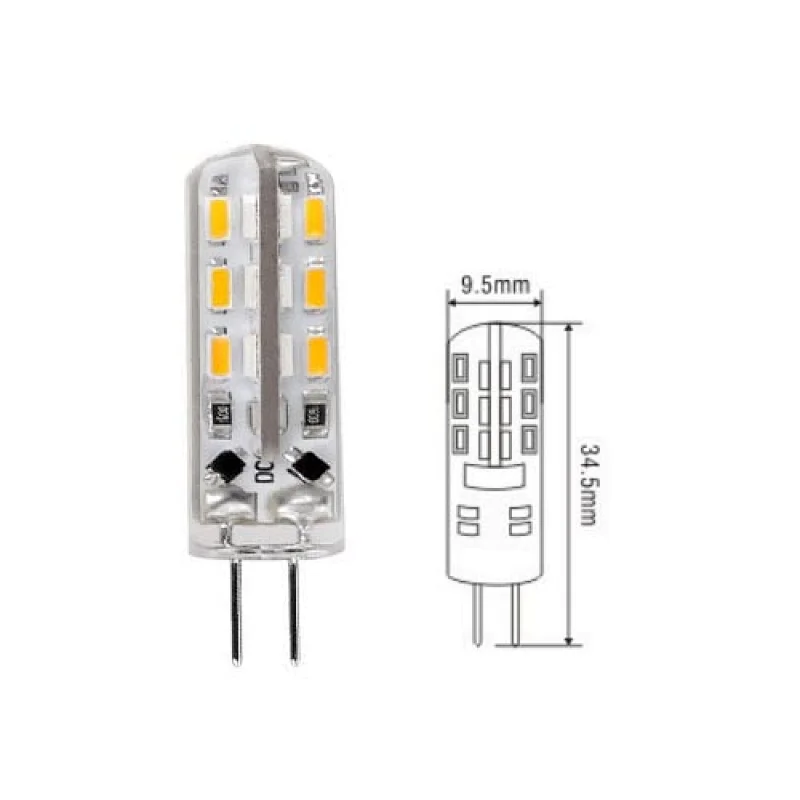

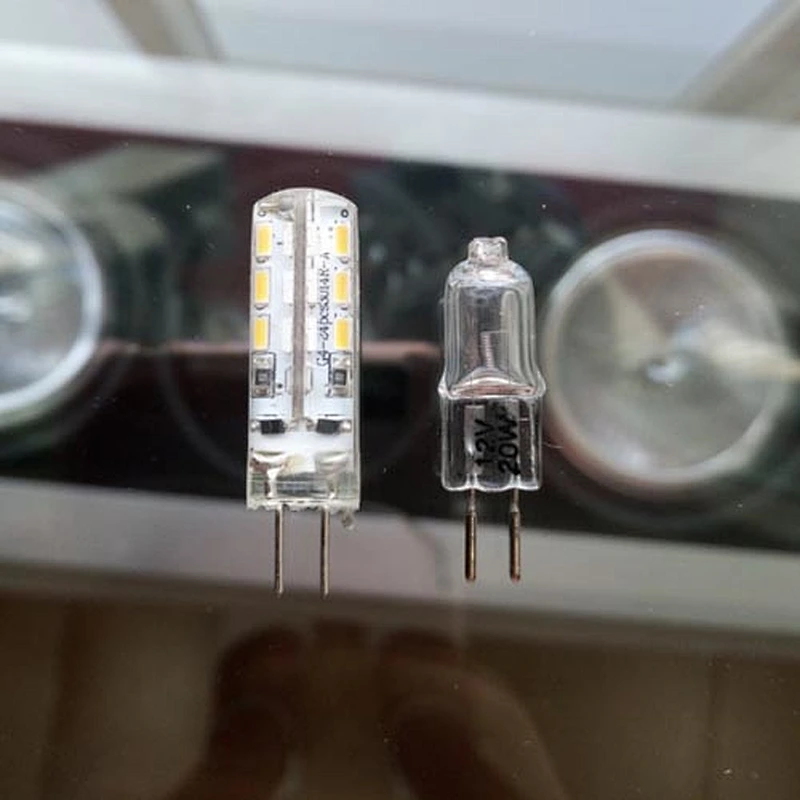

Please note that this bulb the size: 9.5*34.5mm, is almost same as a traditional halogen bulb, which can directly replace halogen’s space. But this bulb ONLY used for 12 volts(AC12V and DC12V) lighting appliance. Non-dimmable, please don't use them with dimmer or unstable 12 volts, or the bulbs will flicker or make noise.

If you use this bulb to replace the halogen lamp and the bulb are blinking (flickering) after installation; there are two way to avoid flickering: 1. Change your transformer to LED driver; 2. Keep one halogen lamp it your light system, don't all install led.
